SWISSBENCH

More than just an evolution, SWISSBENCH workbenches represent a true revolution in the field of workstations designed for watchmaking, jewelry making, and gem setting.

Entirely developed and manufactured in Switzerland, the SWISSBENCH workbench line stands out for its modular design, which provides unprecedented flexibility. Its width-adjustable frame and tool-free removable worktop system (patent pending) ensure extreme versatility.

Ergonomics was at the heart of the development process, resulting in an electric adjustment range from 750 to 1250 mm, as well as modular and expandable drawer units that ensure a perfect combination for any task.

Its technical compartment—which is separate from the worktop and easily accessible even with accessories installed—allows for clean, organized setup thanks to the side openings, while ensuring permanent access for any future modifications.

With short lead times for the standard line and a very wide selection of materials and finishes, SWISSBENCH will quickly take your workshop to the next level!

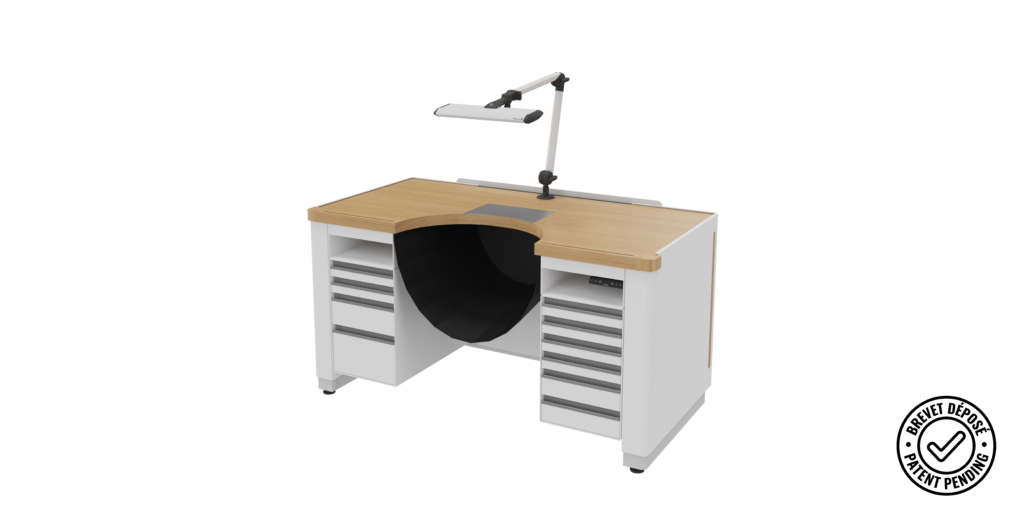

Discover the SWISSBENCH workbench in its configurations for watchmaking and stone-setting.

Basic configuration

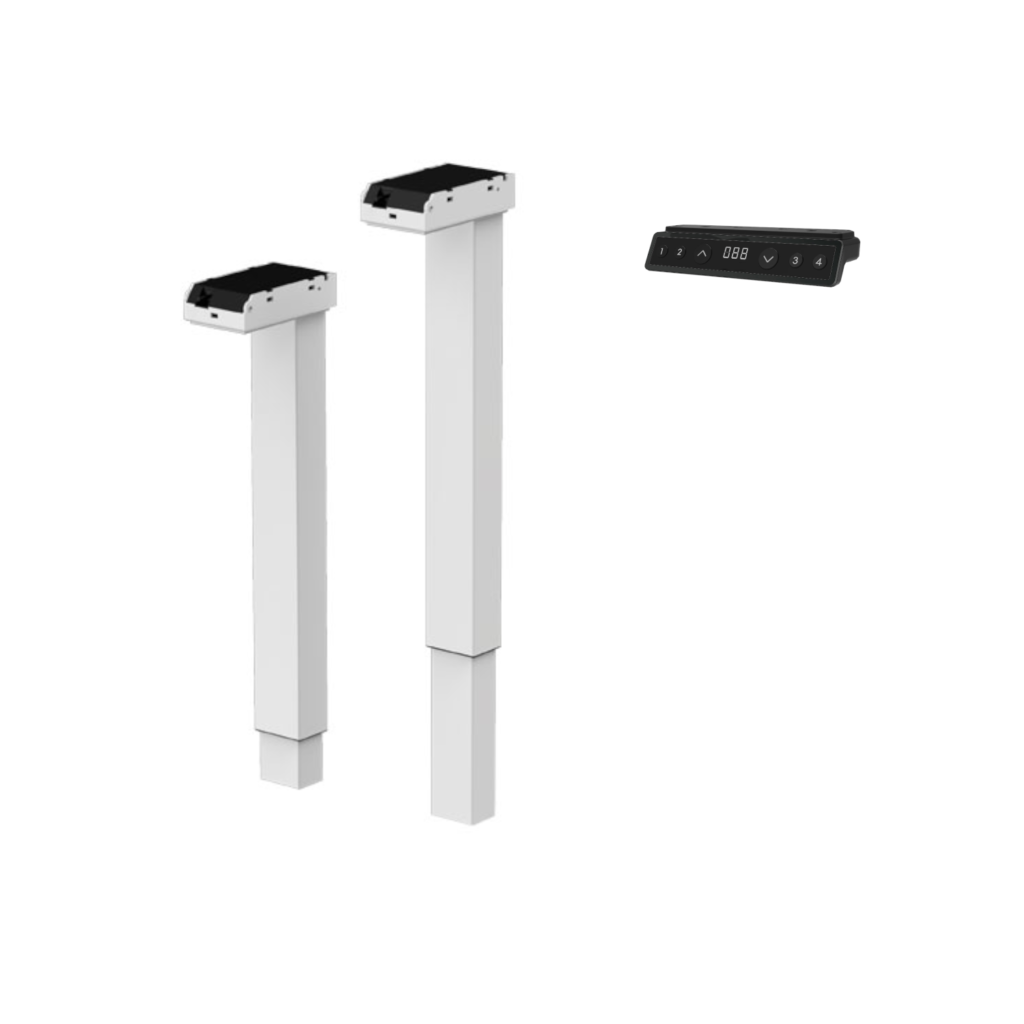

    • Electrical workbench feet

      Electrically adjustable 4-column workbench base. Includes leveling screws for adjusting the workbench.

      Specifications
      • Adjustable height
      • from 750 to 1250 mm

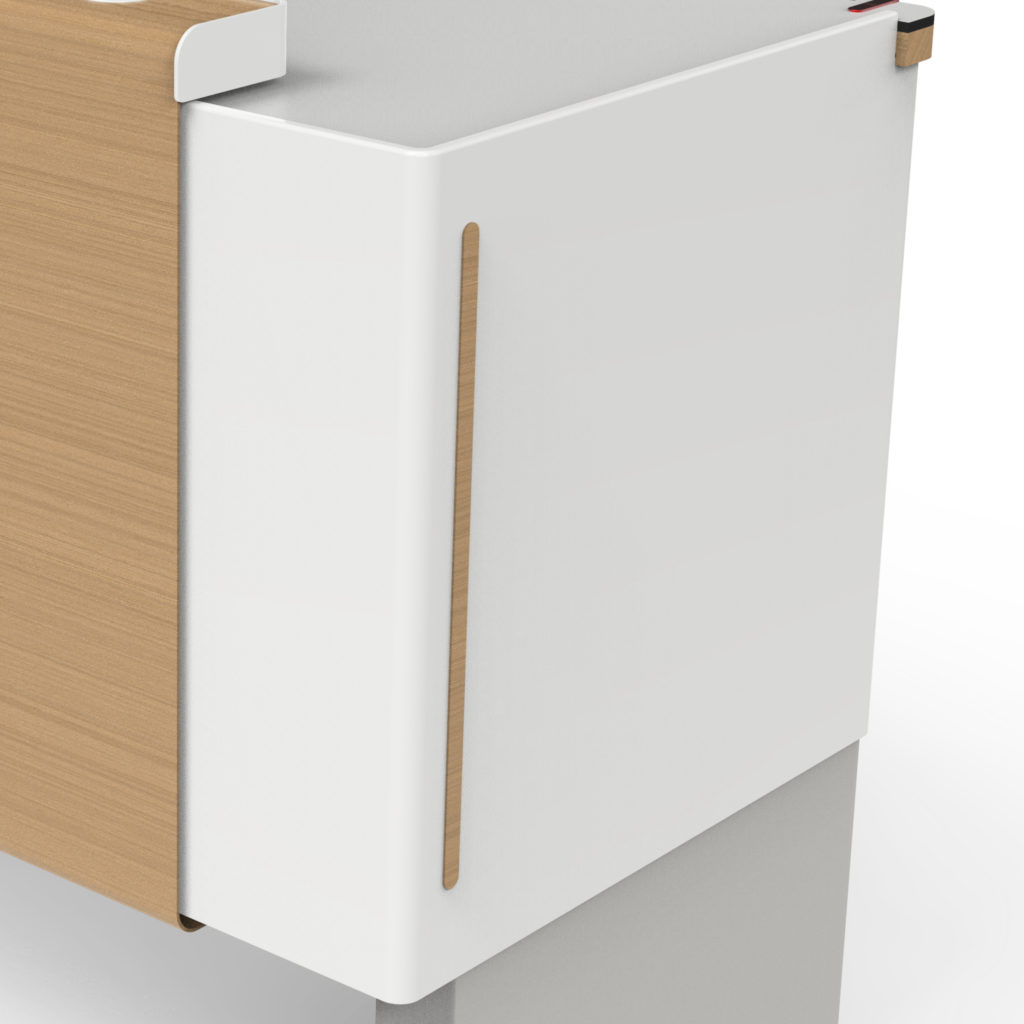

    • Upper cover hood

      Upper cover hood concealing the upper part of the workbench’s frame and legs.

      Specifications
      • Metal finish
      • in RAL 9003;
      • other colours available
      • on request

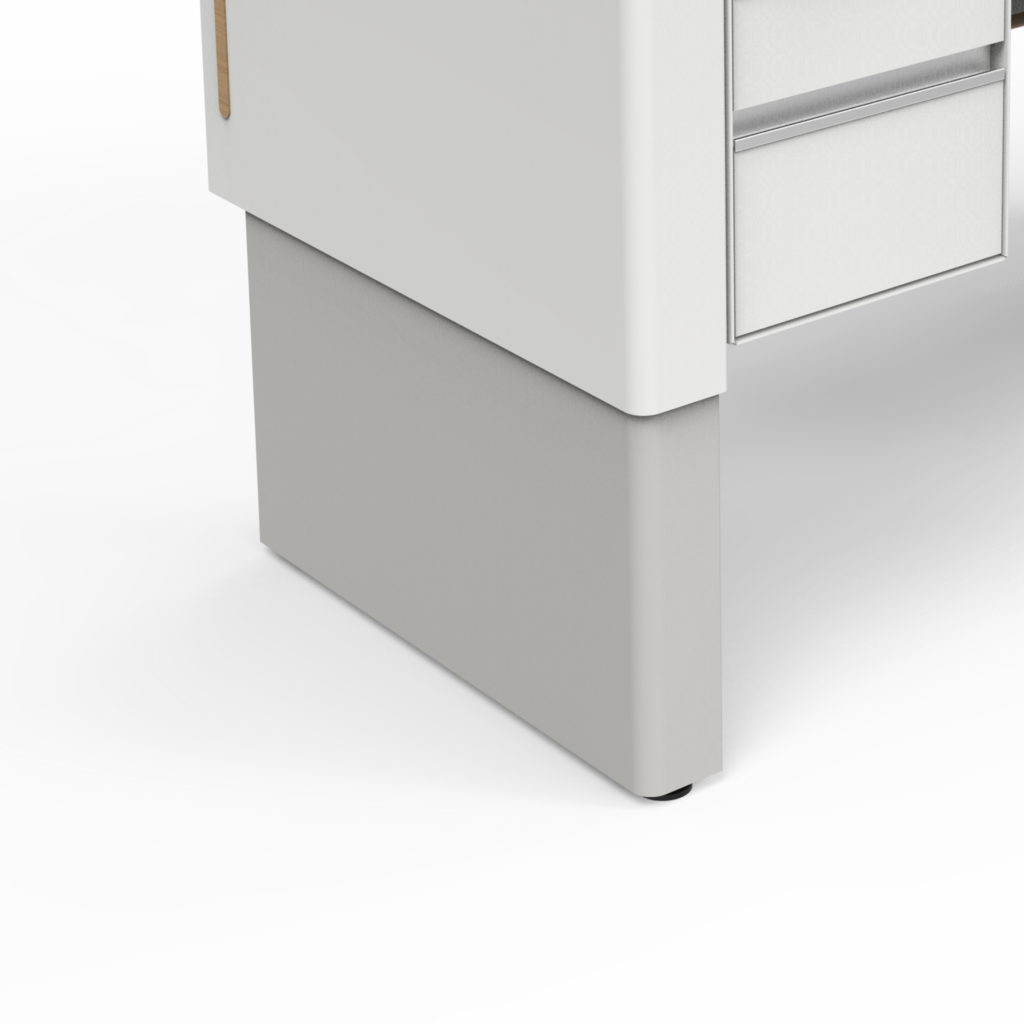

    • Lower cover hood

      Lower cover hood concealing the lower part of the workbench’s frame and legs.

      Specifications
      • Metal finish
      • in RAL 7044;
      • other colours available
      • on request
    • Telescopic frame

      Workbench frame with a width-adjustment system, allowing the width of the workbench to be adjusted.

      Specifications
      • Standard widths
      • from 1200 to 1600 mm
      • in 100 mm increments

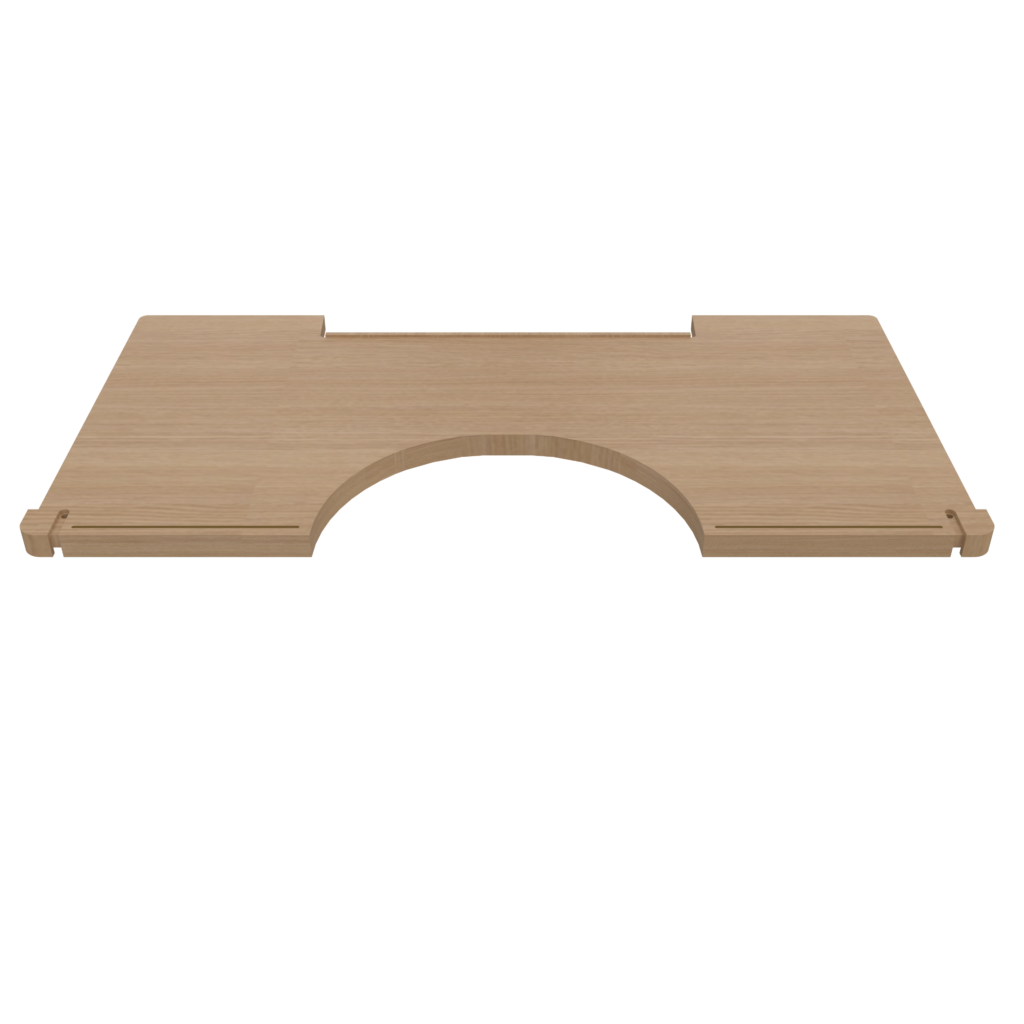

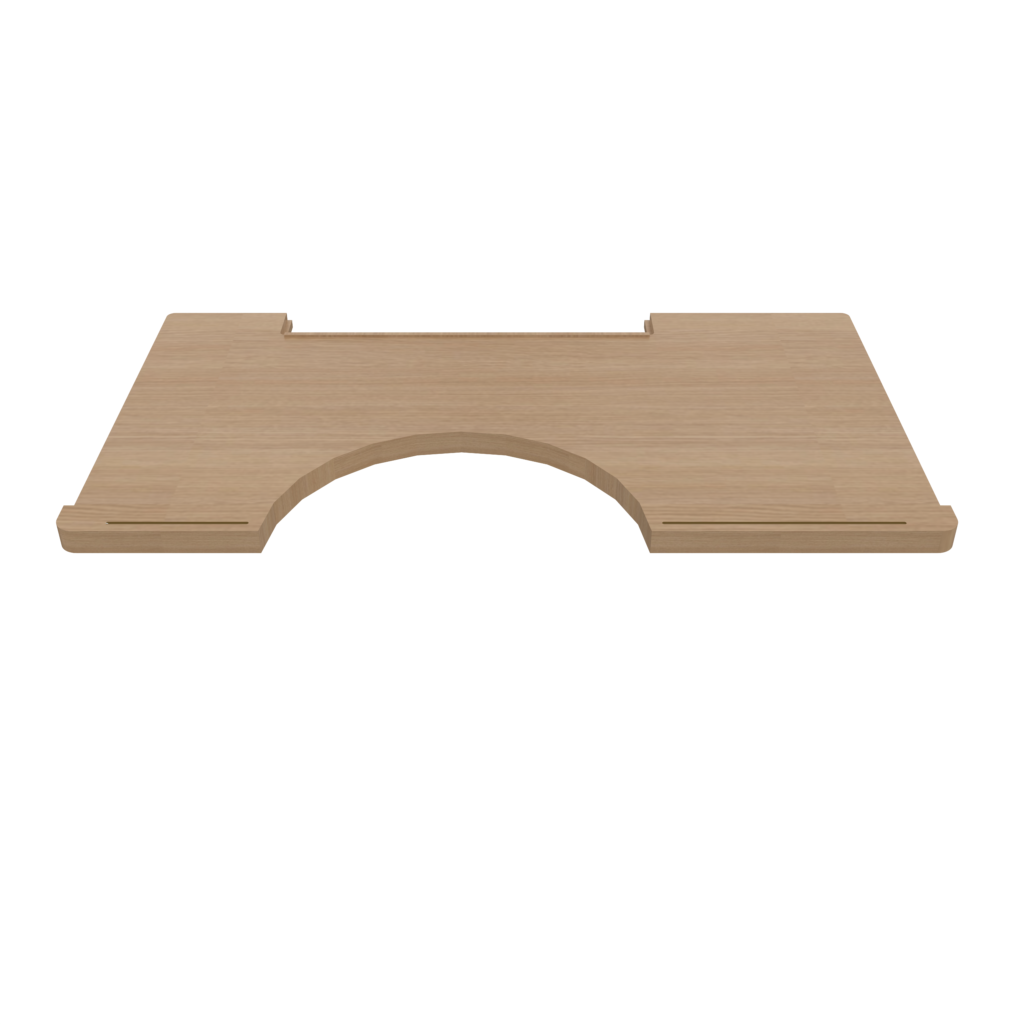

    • Worktop with centered cutting-out

      Workbench top with cutting-out located at the center of the front part.

    • Worktop with off-centered cutting-out

      Workbench top with cutting-out located at the left or the right of the front part, enabling to install a drawer unit.

    • SwissCDF + HPL

      Upper section of the worktop made from 10 mm black SwissCDF, covered with 0.8 mm high-pressure laminate (HPL).
      Lower section of the front made from 30 mm solid oak with a natural lacquer finish.

    • MDF + HPL

      Top section of the tabletop made from 10 mm black MDF covered with 0.8 mm high-pressure laminate (HPL), with 1 mm ABS edging.
      Lower section of the front made from 30 mm solid oak with a natural lacquer finish.

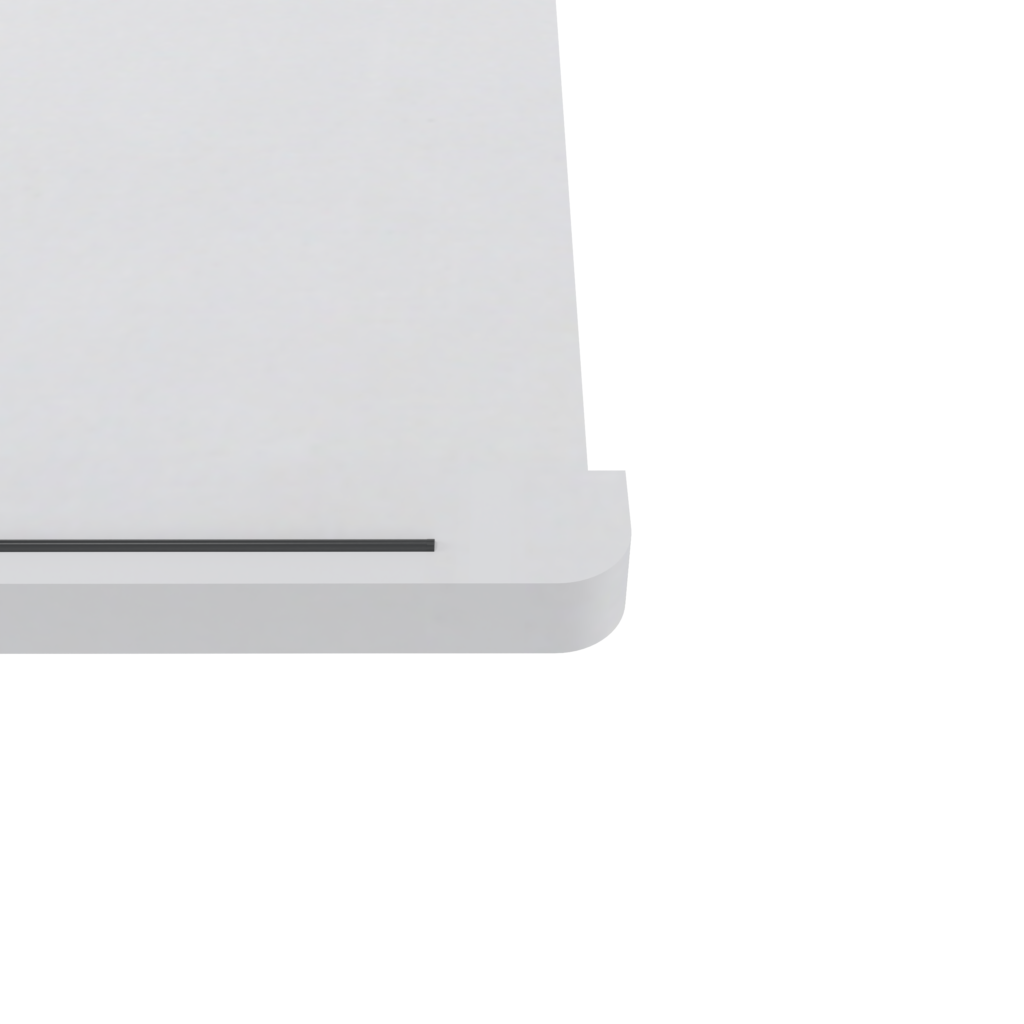

    • Particleboard + HPL

      40 mm particleboard top covered with 0.8 mm high-pressure laminate (HPL), with 1 mm ABS edging.

    • Particleboard + melamine finish

      40 mm particleboard top covered with a melamine finish, with 1 mm ABS edging.

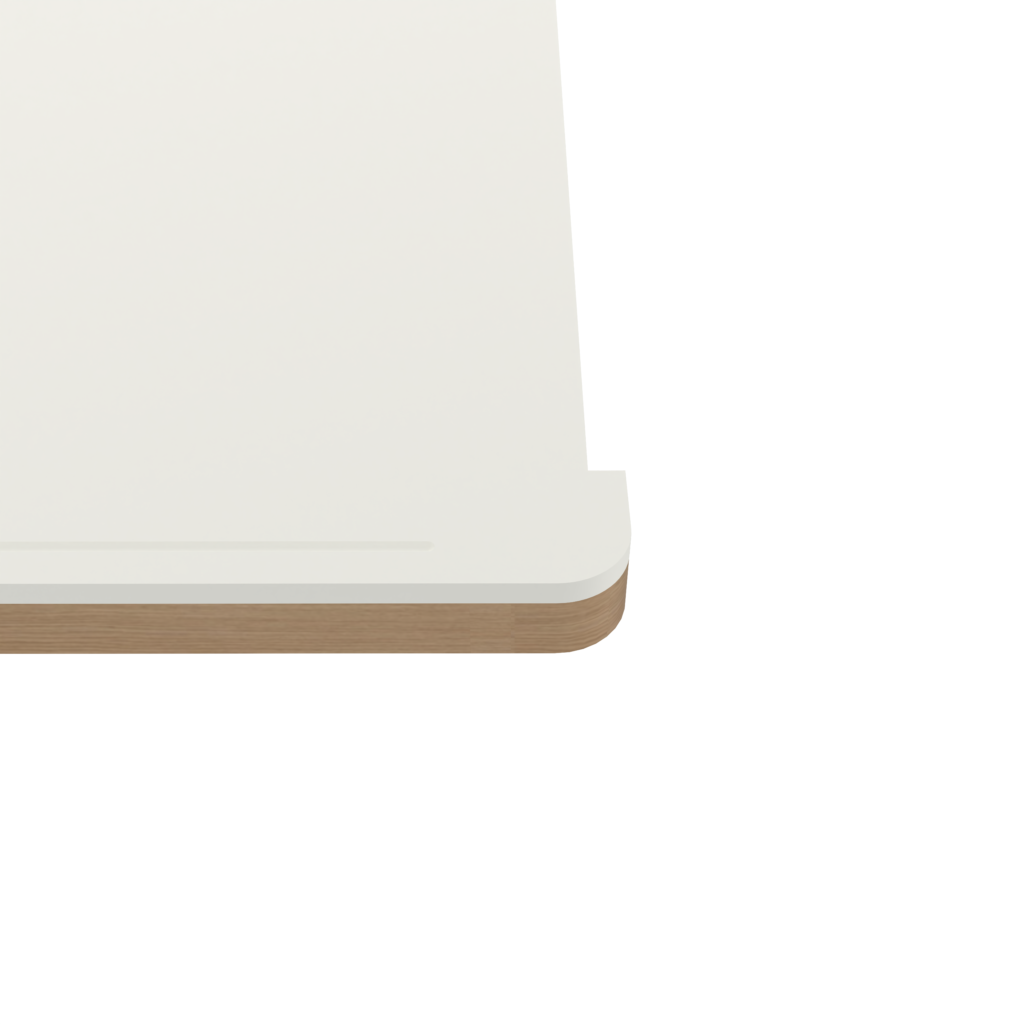

    • Corian®

      Top section of the worktop made from 12 mm Corian® solid surface material.

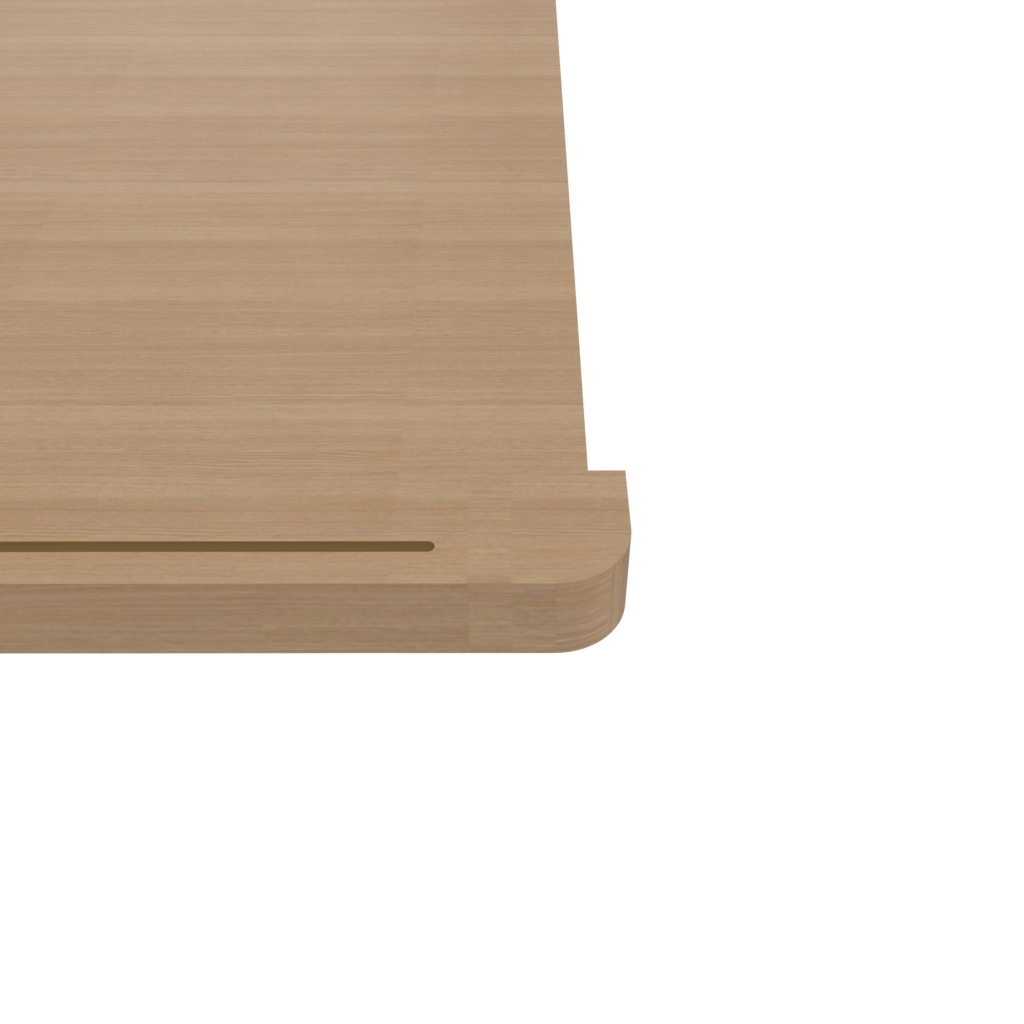

    • Solid wood

      Solid wood top with a natural lacquer finish, 40 mm thick.
      Choice of wood types according to the collection.

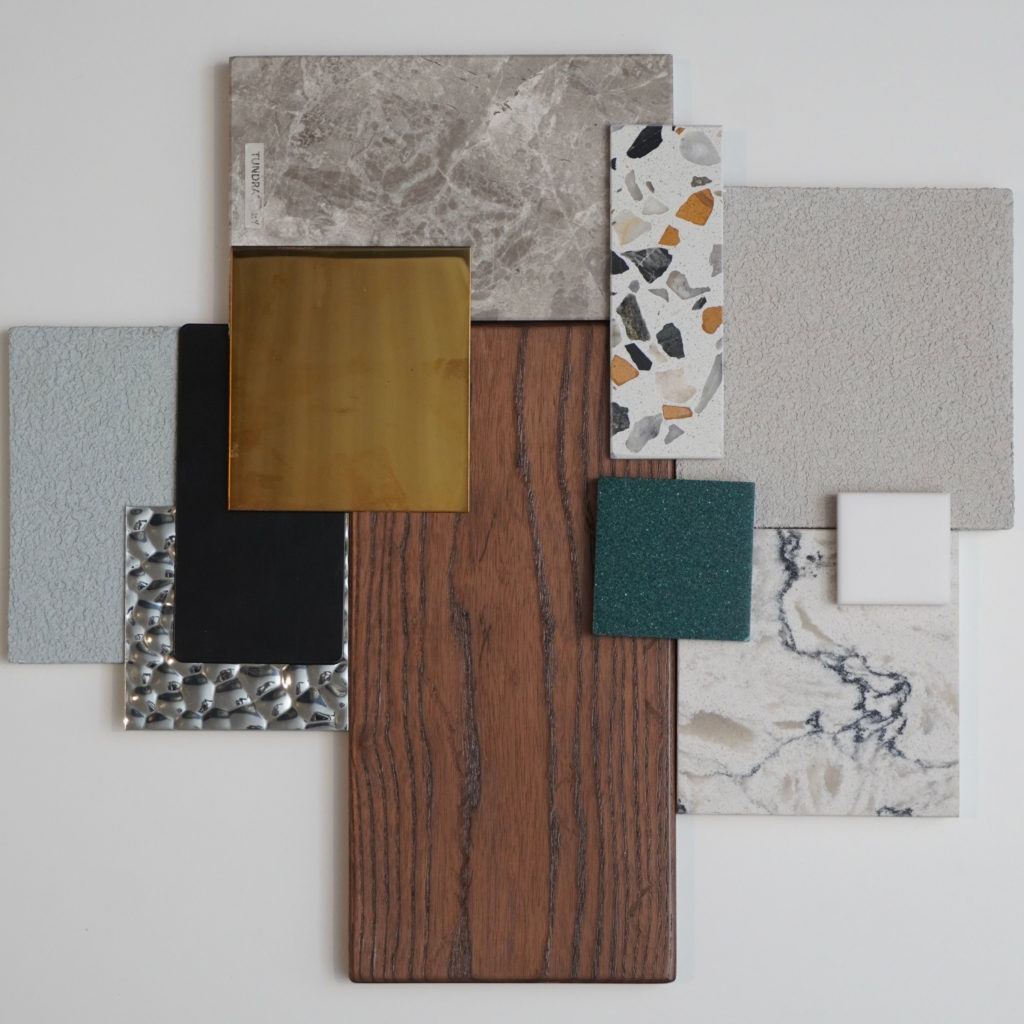

    • Other materials

      Other materials are available on request.

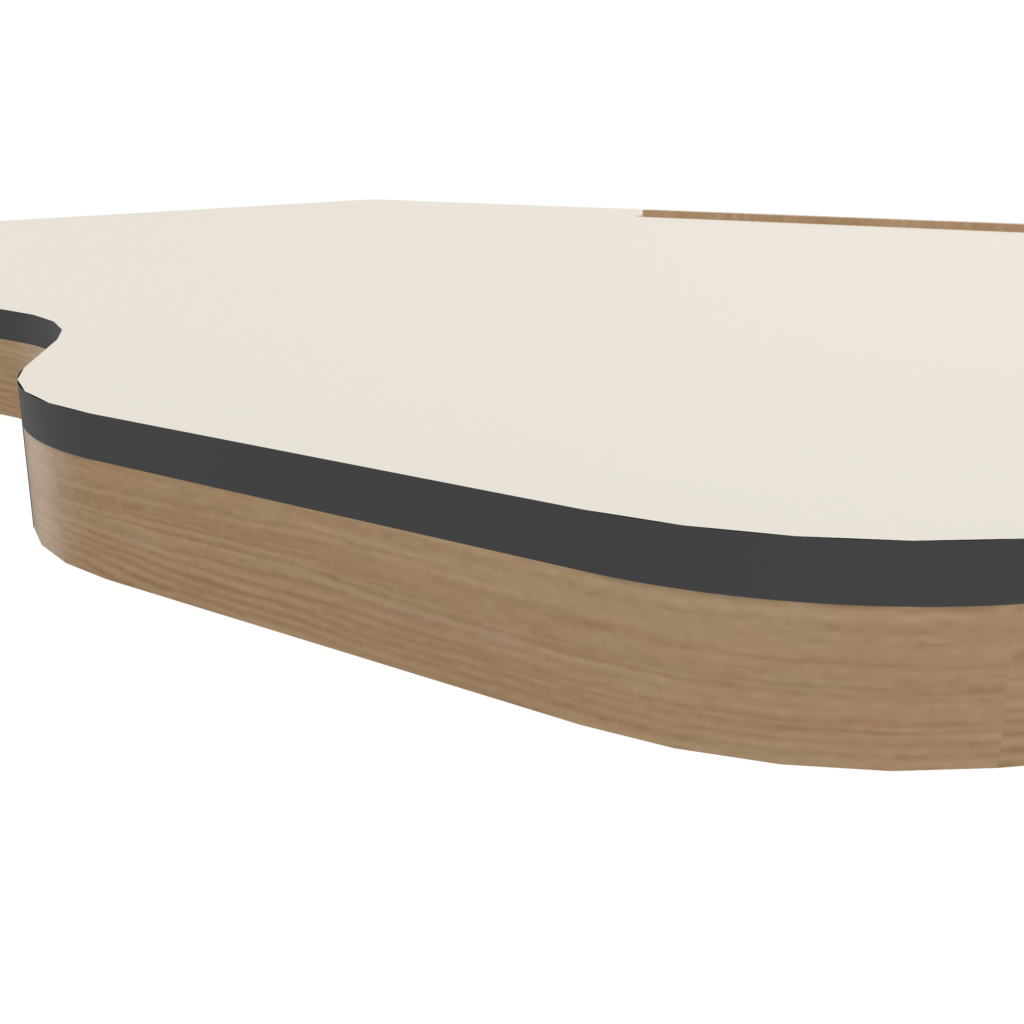

    • Worktop wihtout trim

      Simple worktop without front trim.

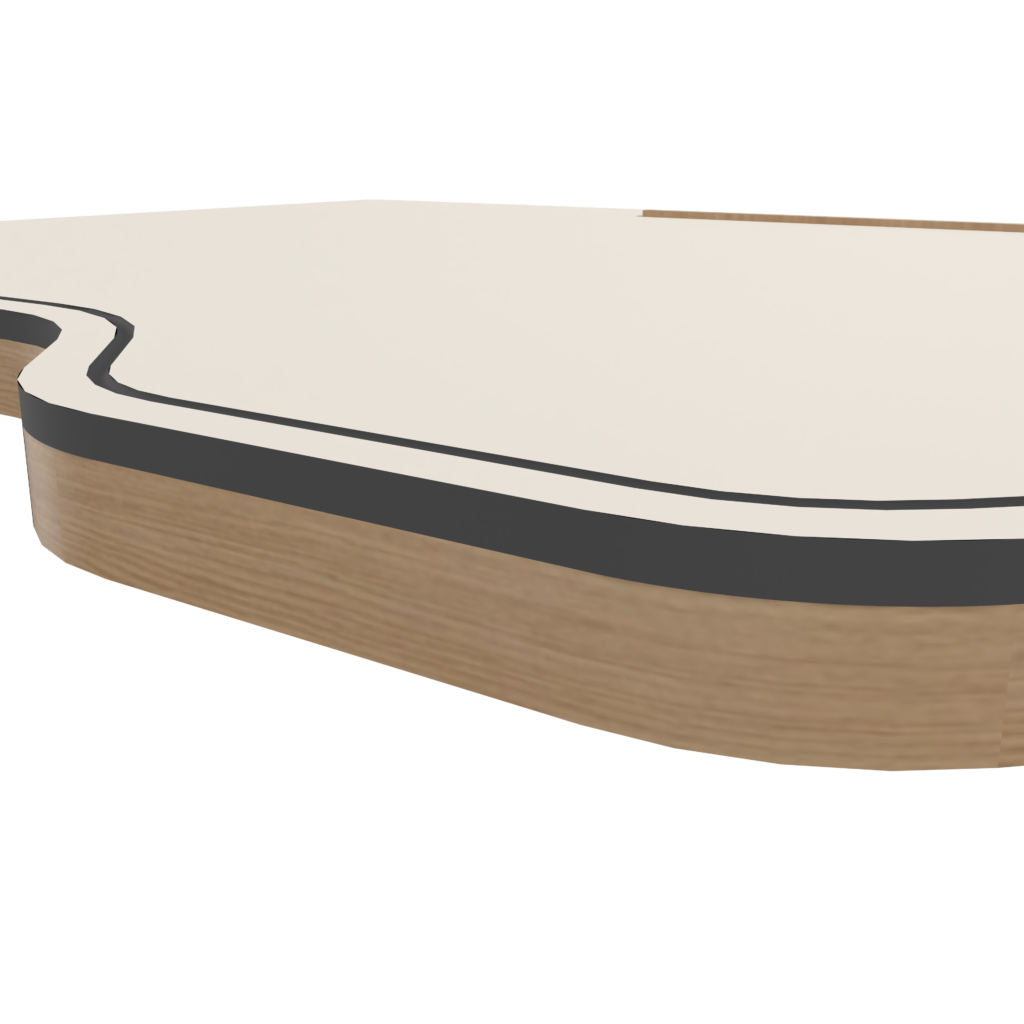

    • Trim milled into the worktop

      A 2 mm milled trim on the front of the worktop prevents small parts from falling off the workbench.

      The milled trim is not available for the particleboard + LHP and particleboard + melamine finish worktops.

    • Overhanging trim

      A 3 mm black PVC overhanging trim at the front of the worktop prevents small parts from falling off the workbench.

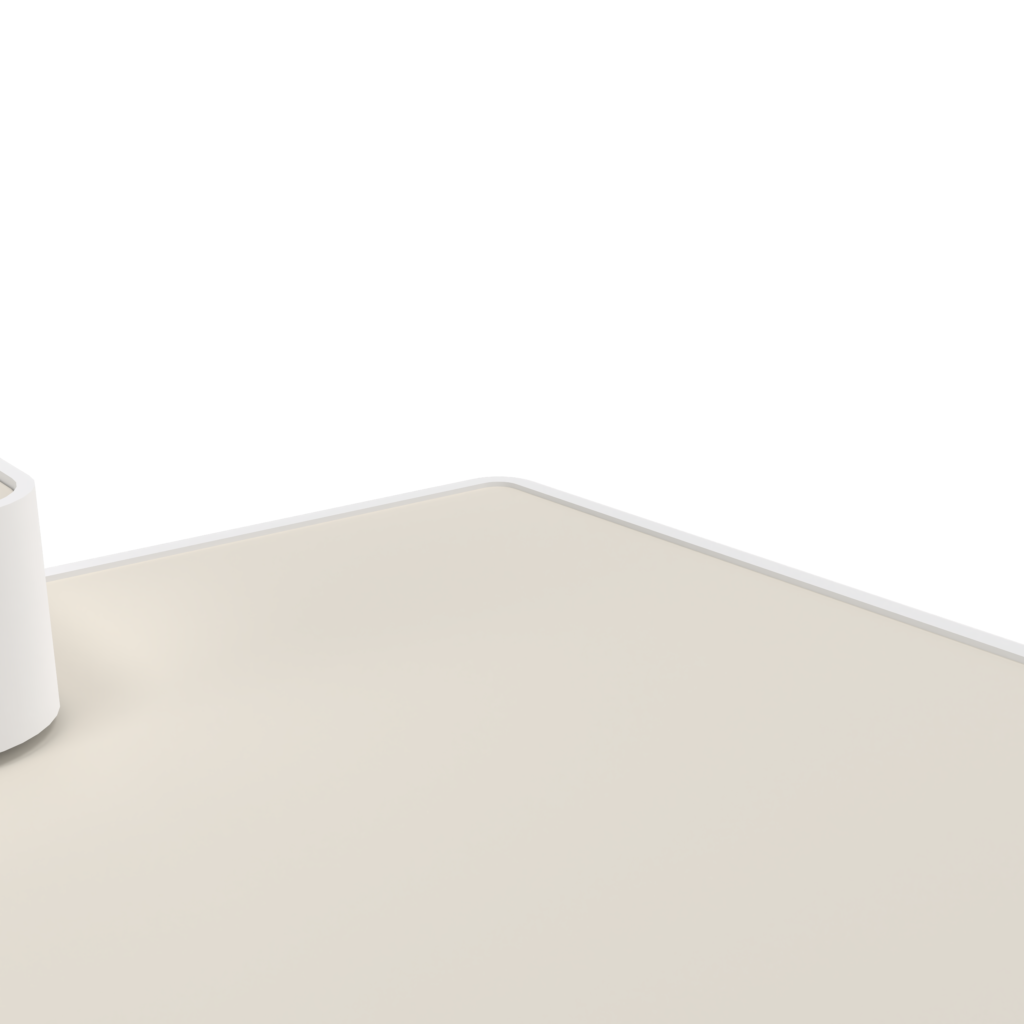

    • Metal trim

      Rear metal trim.
      The workbench top is clammped onto the rear metal trim.

    • Metal trim with MDF joint

      Rear metal trim with a MDJ joint.
      The worktop is clamped onto the MDF joint.

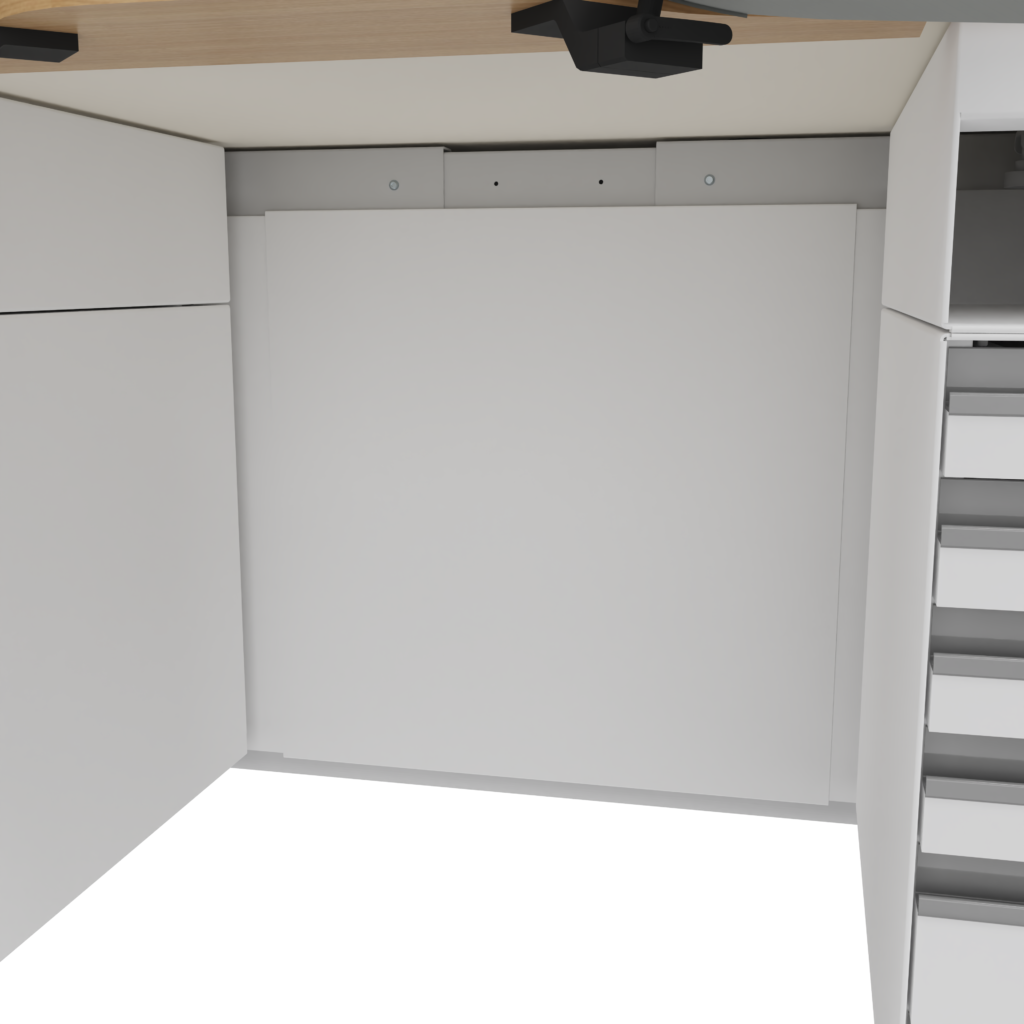

    • Technical compartment

      Rear technical compartment with a wooden panel for organising the workbench’s various pipes and cables.
      Closed by a set of three metal plates to conceal the technical section.

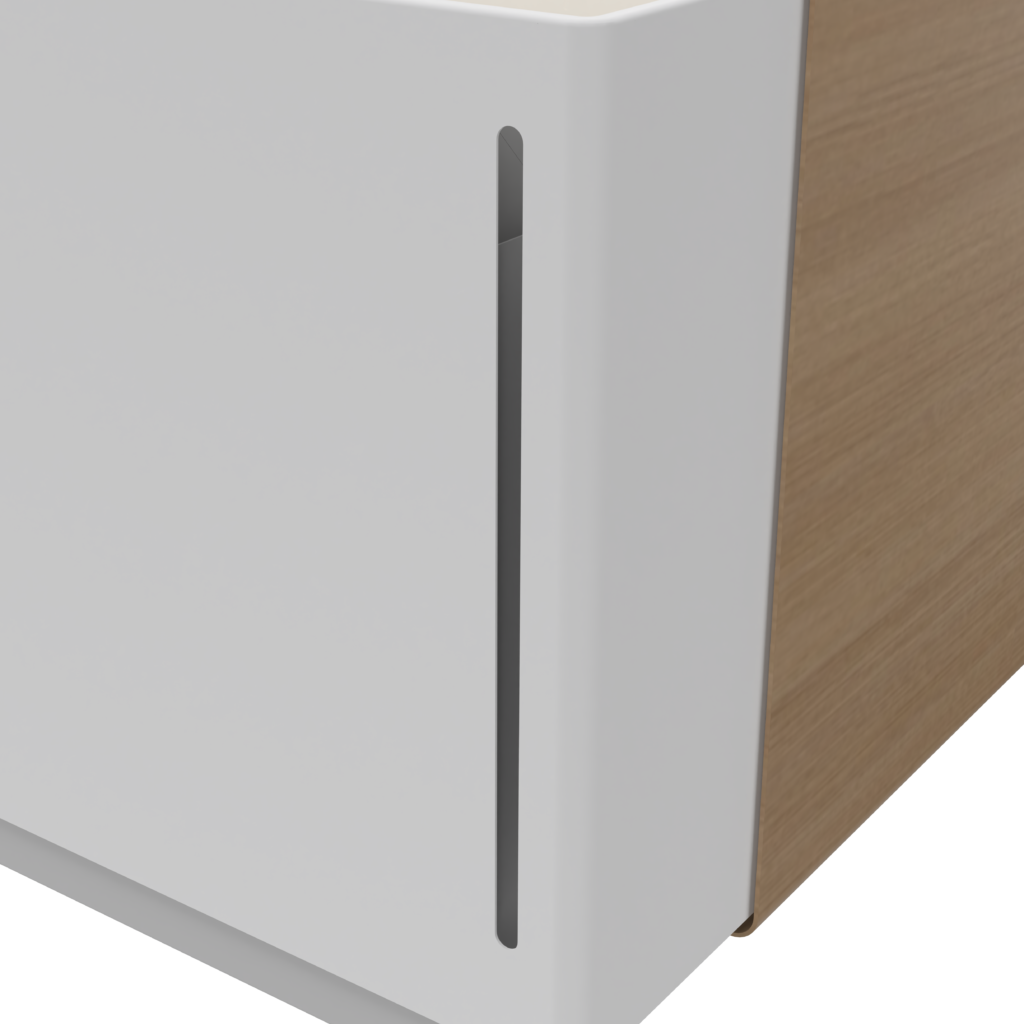

    • Side passageway

      A side passageway allowing various technical components (cables, pipes, etc.) to be routed from one workbench to another, enabling a neat, linear layout.

SWISSBENCH options for jewellery

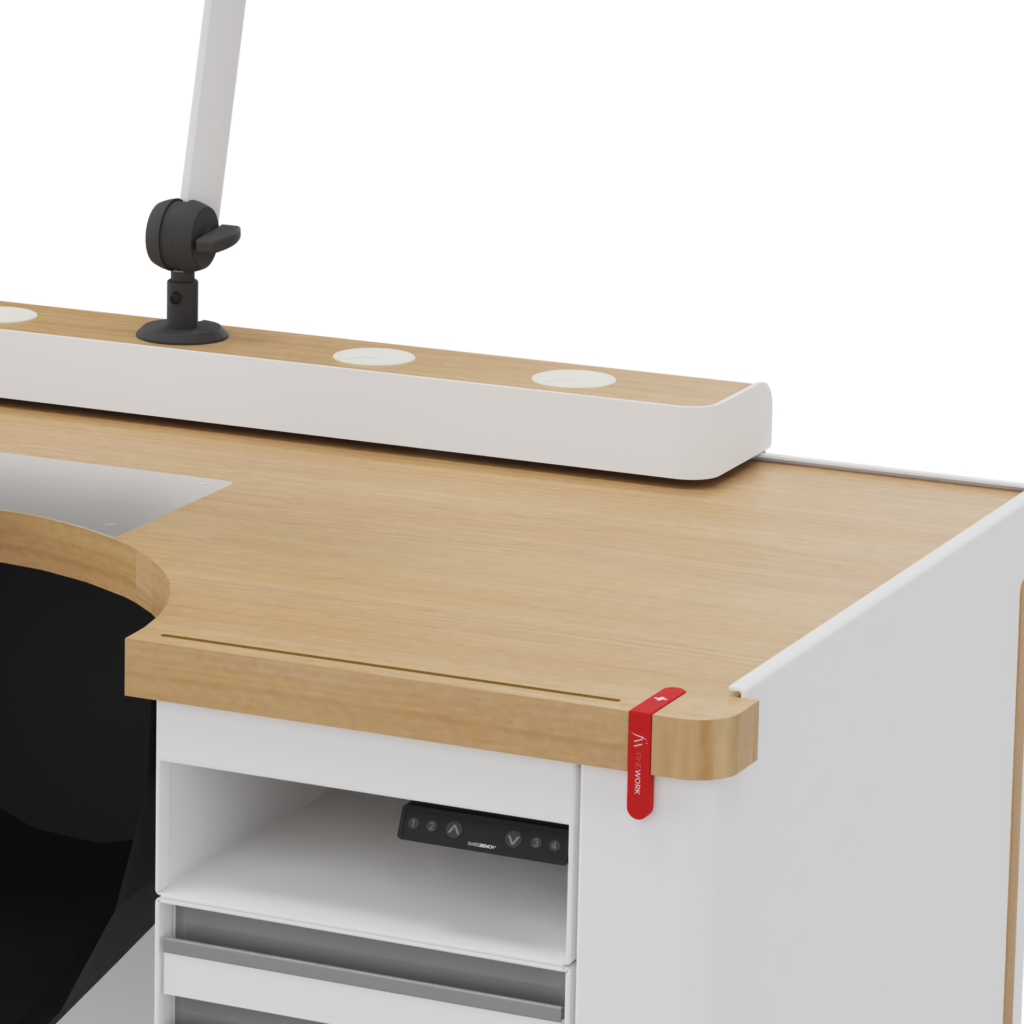

    • Flextable removable worktop system

      The Flextable removable worktop system allows you to change your workbench’s worktop in a matter of seconds without the need for tools.
      This means you can change your workbench’s worktop to fit a specific worktop for a particular task,
      or fit a worktop with a pre-installed machine.
      Removing the worktop also provides access to the rear technical compartment, making cabling work easier.

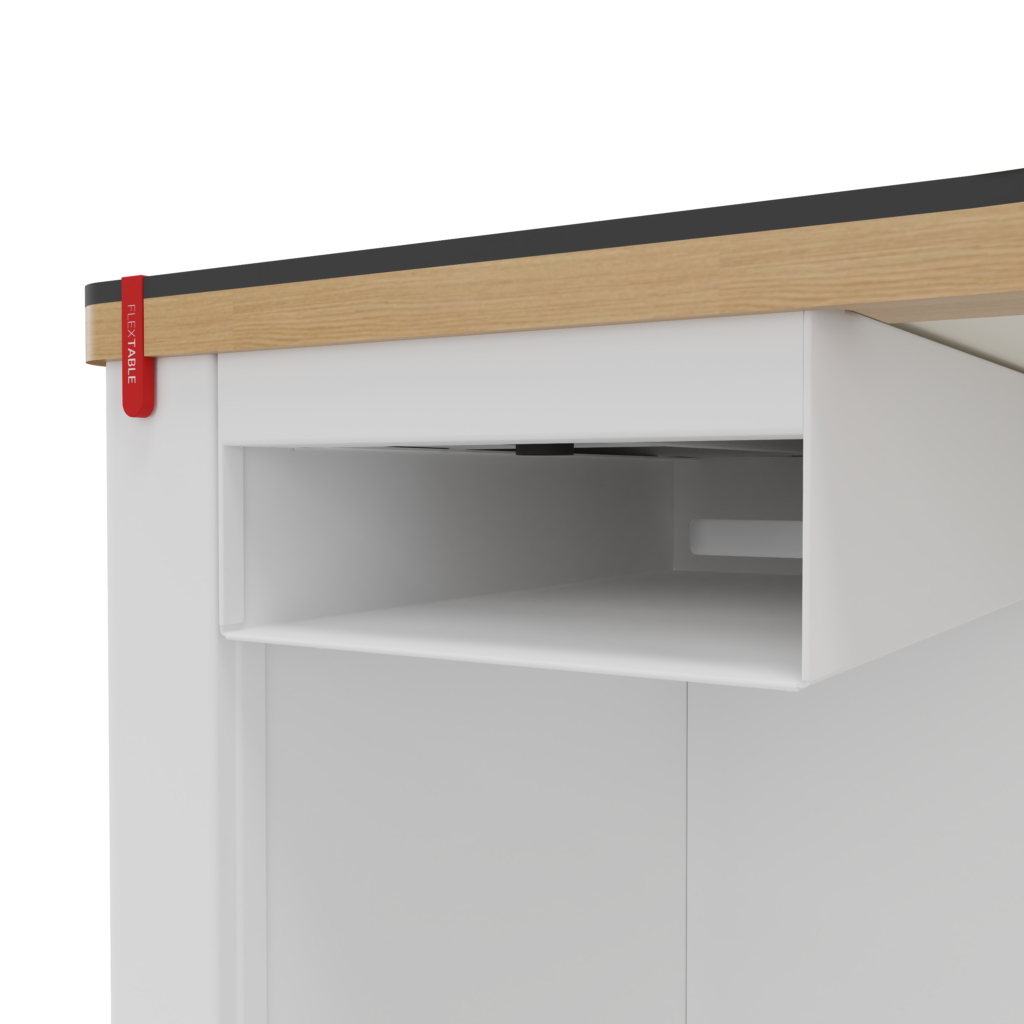

    • Open unit

      Open unit made from powder-coated sheet steel. The open unit option must be selected when installing drawer units.

      Specifications
      • Dimensions:
      • 303 x 530 x 95 mm h

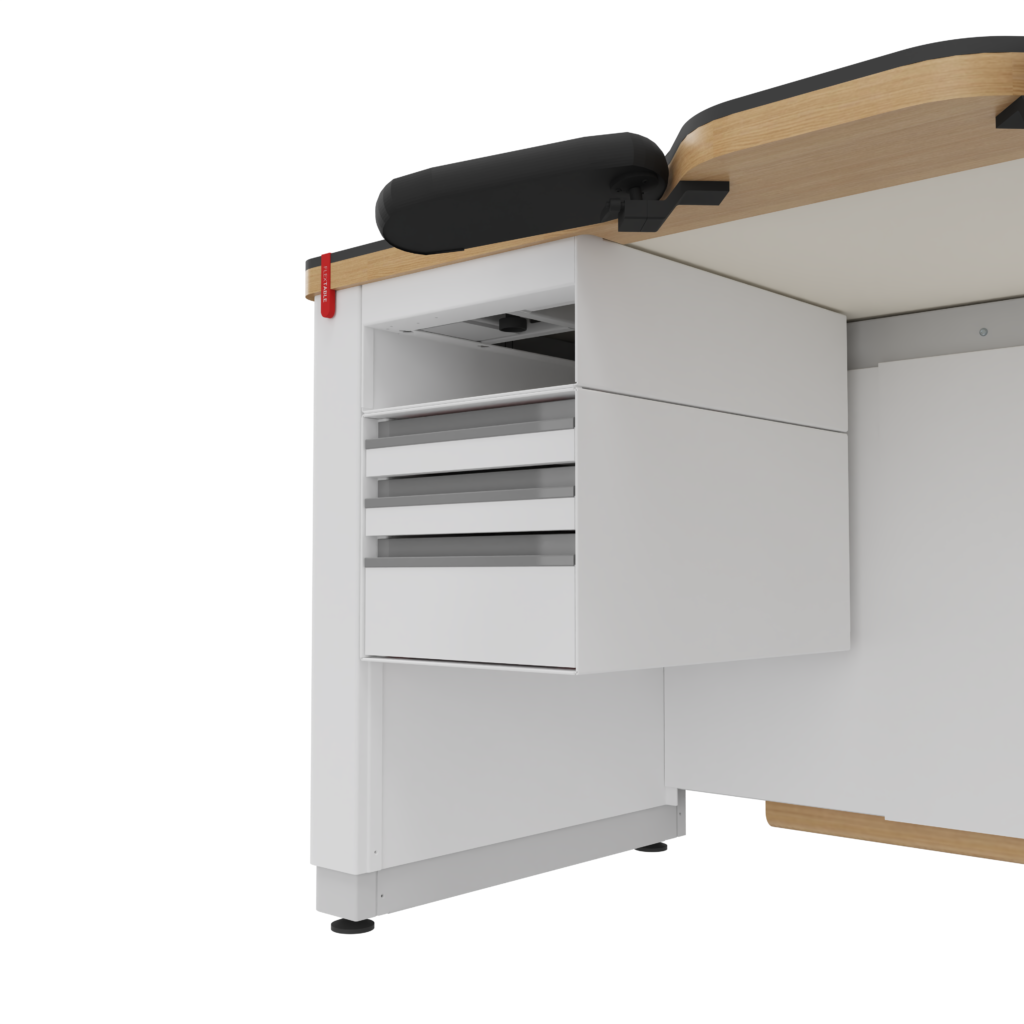

    • Modular drawer unit -size S

      Drawer unit made from powder-coated sheet steel with drawers of various heights, fitted with full-extension runners and a soft-close mechanism.
      The different drawer heights can be combined as required, depending on the dimensions of the frame.
      The drawer unit can be removed without the use of tools, and the layout of the drawers can be reconfigured at any time.

      For workbenches with 1200 and 1300 mm wide: 1 drawer unit can be fitted, either on the right or left.
      For workbenches with 1400 mm wide or wider: 2 drawer units can be fitted.

      Specifications
      • Dimensions unit S:
      • 303 x 530 x 265 mm h
      • Total front height available: 256 mm
      • Front height of drawers:
      • 64 mm (S) , 96 mm (M)
      • 128 mm (L), 192 mm (XL)

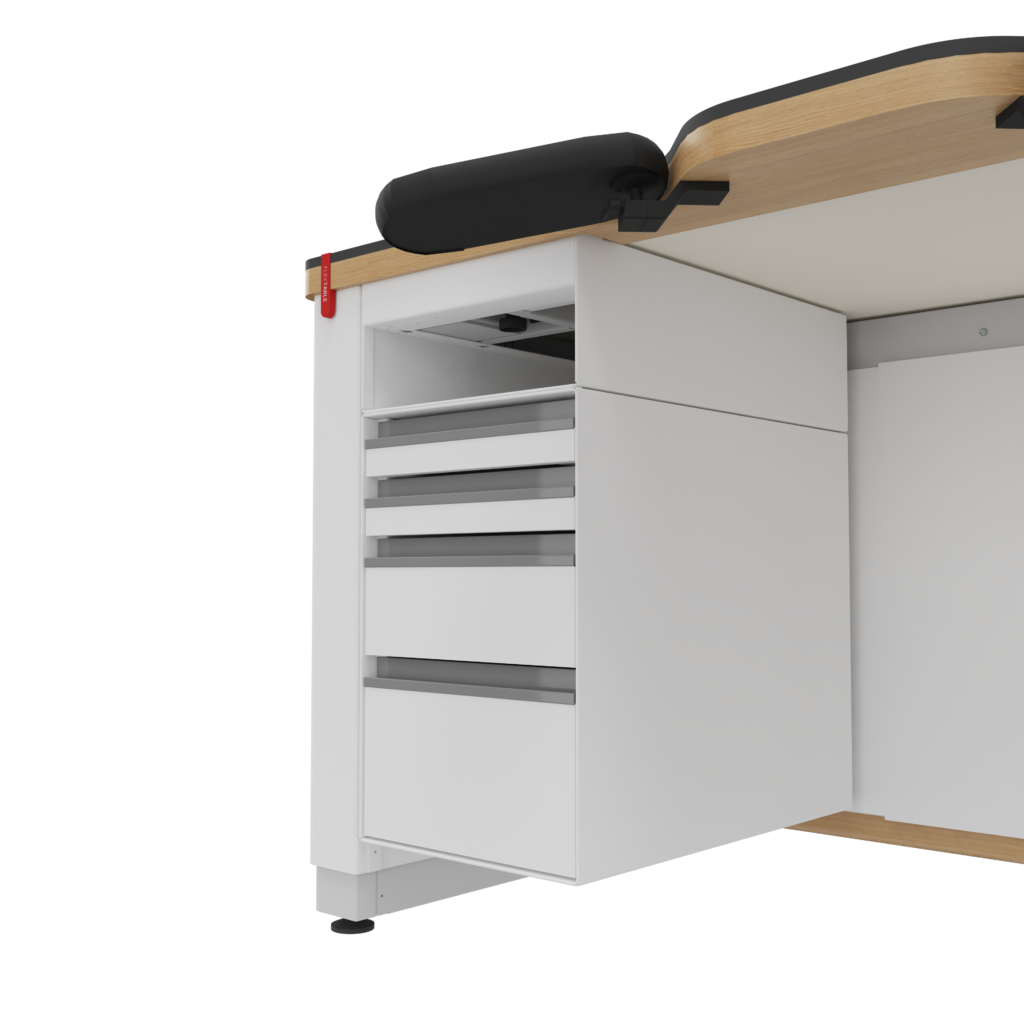

    • Modular drawer unit -size M

      Drawer unit made from powder-coated sheet steel with drawers of various heights, fitted with full-extension runners and a soft-close mechanism.
      The different drawer heights can be combined as required, depending on the dimensions of the frame.
      The drawer unit can be removed without the use of tools, and the layout of the drawers can be reconfigured at any time.

      For workbenches with 1200 and 1300 mm wide: 1 drawer unit can be fitted, either on the right or left.
      For workbenches with 1400 mm wide or wider: 2 drawer units can be fitted.

      Specifications
      • Dimensions unit M:
      • 303 x 530 x 457 mm h
      • Total front height available: 448 mm
      • Front height of drawers:
      • 64 mm (S) , 96 mm (M)
      • 128 mm (L), 192 mm (XL)

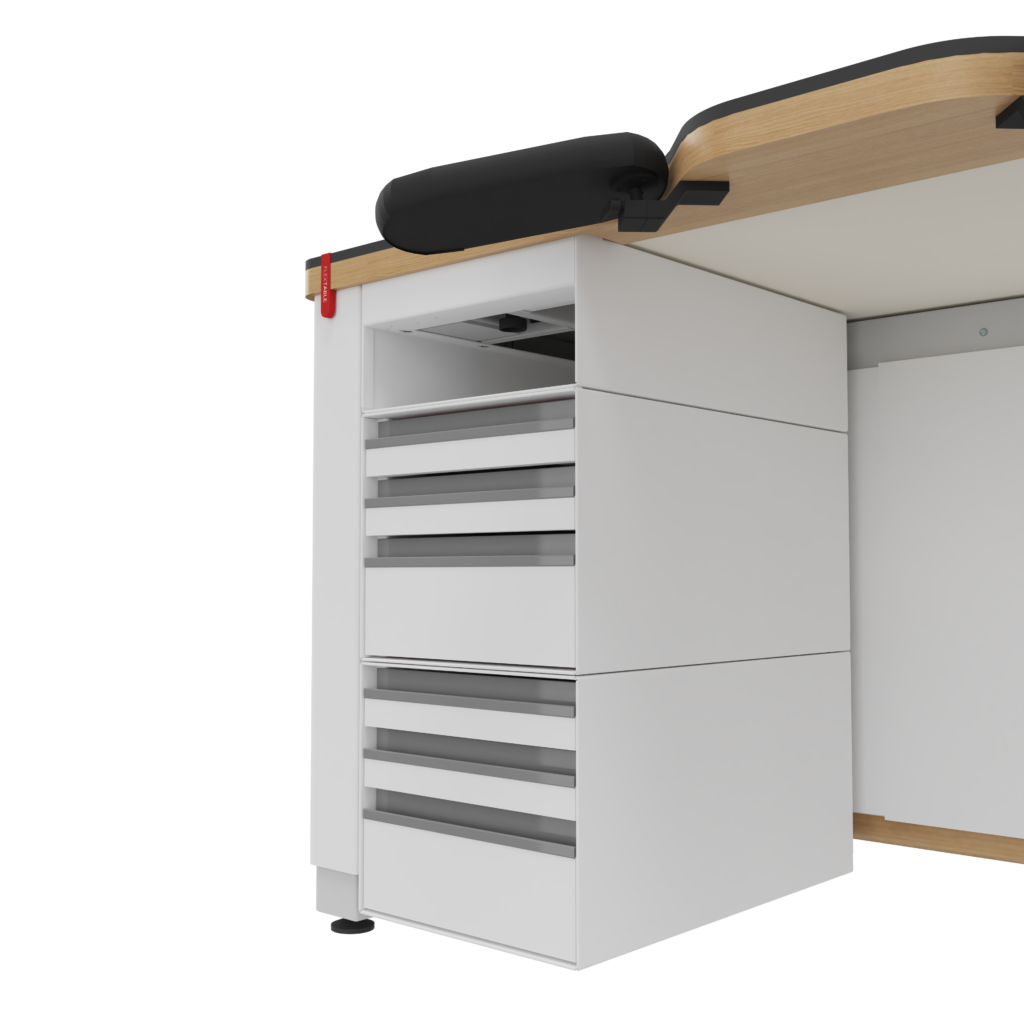

    • Modular drawer unit -size L

      Drawer unit made from powder-coated sheet steel with drawers of various heights, fitted with full-extension runners and a soft-close mechanism.
      The different drawer heights can be combined as required, depending on the dimensions of the frame.
      The drawer unit can be removed without the use of tools, and the layout of the drawers can be reconfigured at any time.

      For workbenches with 1200 and 1300 mm wide: 1 drawer unit can be fitted, either on the right or left.
      For workbenches with 1400 mm wide or wider: 2 drawer units can be fitted.

      Specifications
      • Dimensions unit L:
      • 303 x 530 x 530 mm h
      • Total front height available: 512 mm
      • Front height of drawers:
      • 64 mm (S) , 96 mm (M)
      • 128 mm (L), 192 mm (XL)

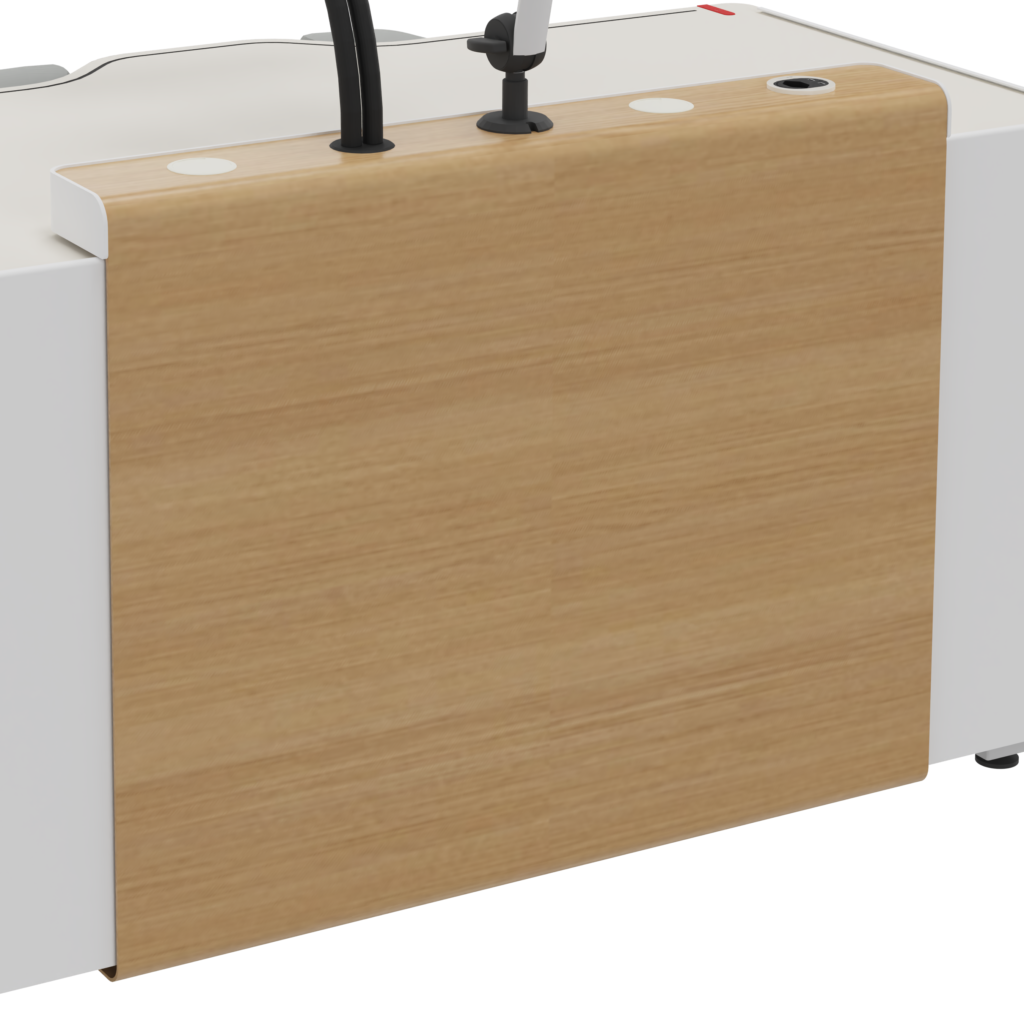

    • High rear spoiler in oak finish

      High rear spoiler with technical compartment attached to the workbench frame, separate from the worktop.
      The module allows easy access to the technical area by removing the worktop, without having to dismantle the existing technical installation or remove any fitted accessories.
      The SWISSBENCH technical unit has 5 slots for fitting technical components.

      The spoiler is finished in genuine oak; other wood species are available on request.

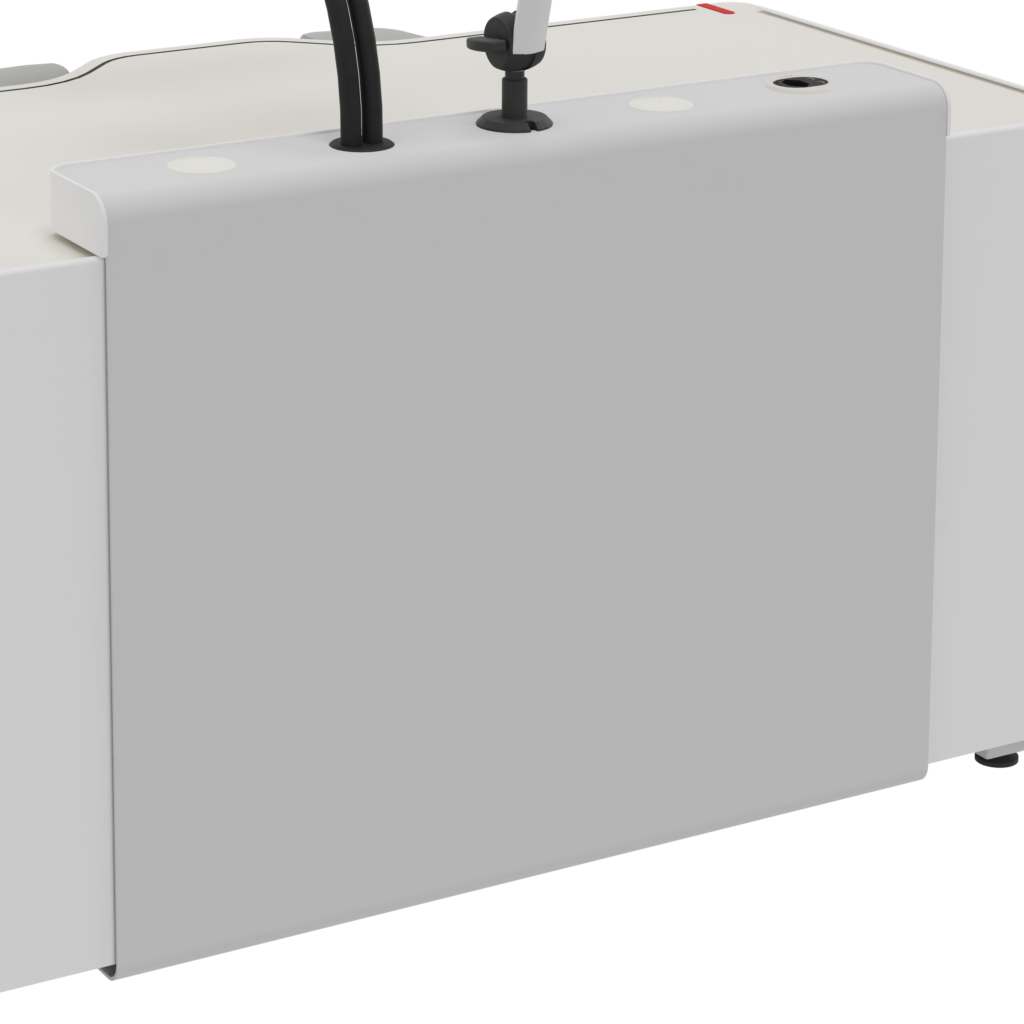

    • High rear spoiler in steel finish

      High rear spoiler with technical compartment attached to the workbench frame, separate from the worktop.
      The module allows easy access to the technical area by removing the worktop, without having to dismantle the existing technical installation or remove any fitted accessories.
      The SWISSBENCH technical unit has 5 slots for fitting technical components.

      The spoiler is finished in powder-coated sheet steel, colour RAL 7044; other colours available on request.

    • Short rear spoiler in oak finish with cubic utilities rail

      Short rear spoiler allowing the rear section of the workbench to be closed.
      Technical rail with a system of modular cubes integrated into the worktop, allowing you to attach various accessories such as a lamp, air/vacuum system, electrical sockets, USB ports, etc., wherever you choose. The positioning of the components can be adjusted at any time without the need for tools.

      The spoiler is finished in genuine oak; other wood types are available on request.

    • Short rear spoiler in steel finish with cubic utilities rail

      Short rear spoiler allowing the rear section of the workbench to be closed.
      Technical rail with a system of modular cubes integrated into the worktop, allowing you to attach various accessories such as a lamp, air/vacuum system, electrical sockets, USB ports, etc., wherever you choose. The positioning of the components can be adjusted at any time without the need for tools.

      The spoiler is finished in powder-coated sheet steel, colour RAL 7044; other colours available on request.

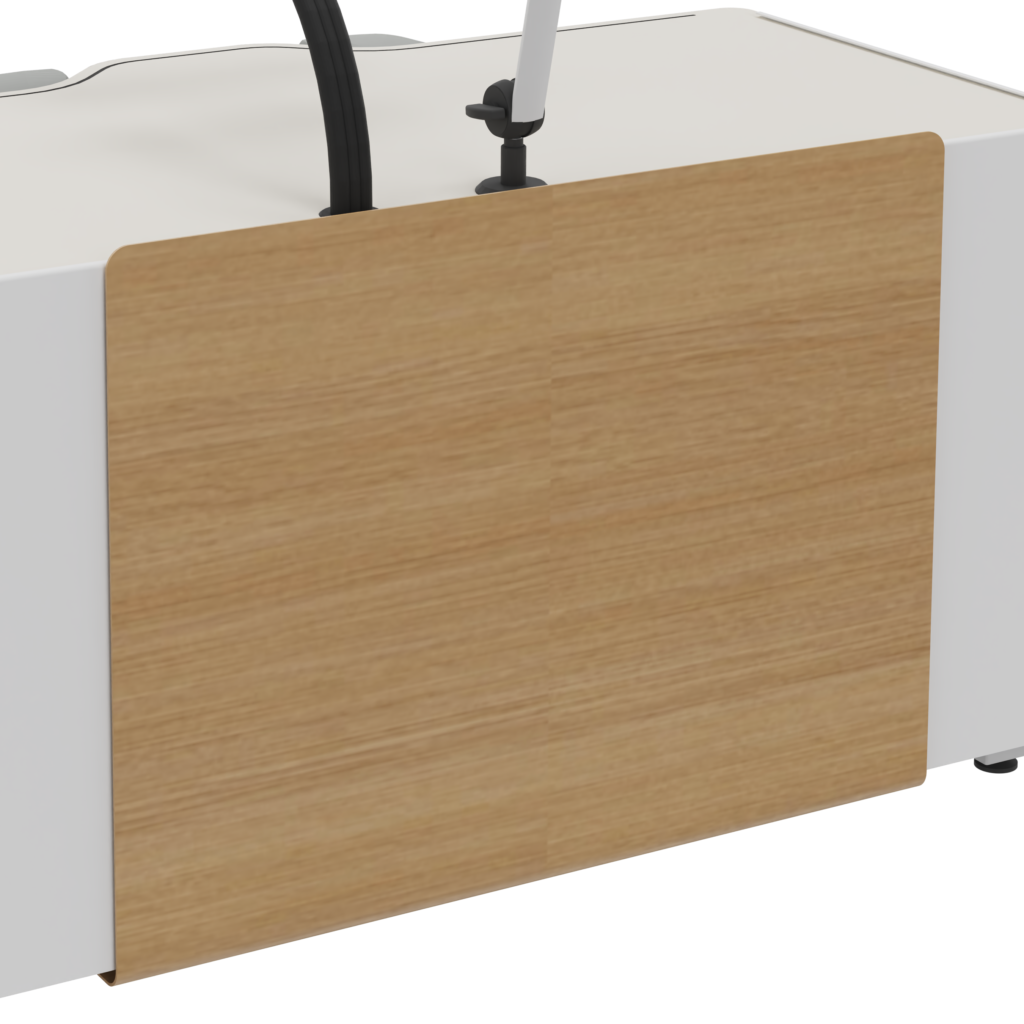

    • Short rear spoiler in oak finish with drilled holes in the worktop

      Short rear spoiler allowing the rear section of the workbench to be closed.
      The technical components are secured to the worktop via pre-drilled holes.

      The spoiler is finished in genuine oak; other wood types are available on request.

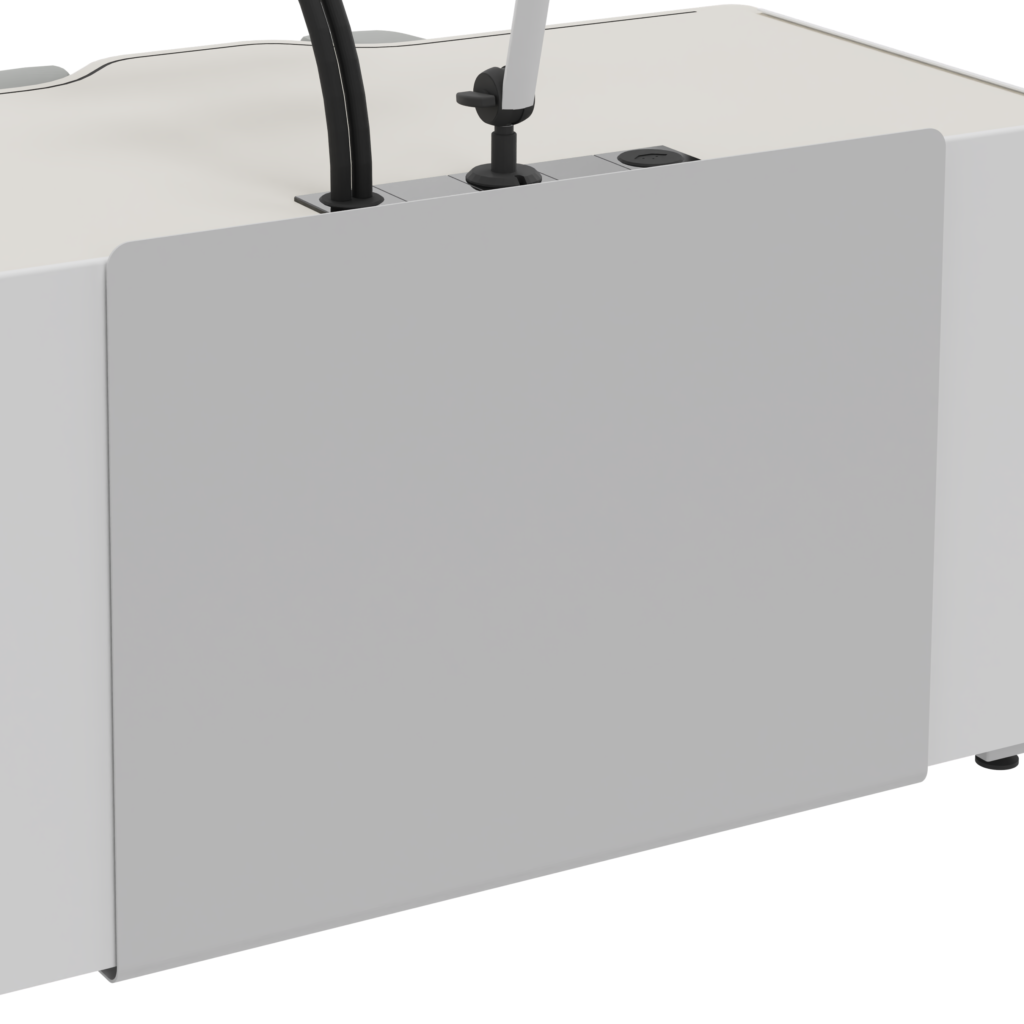

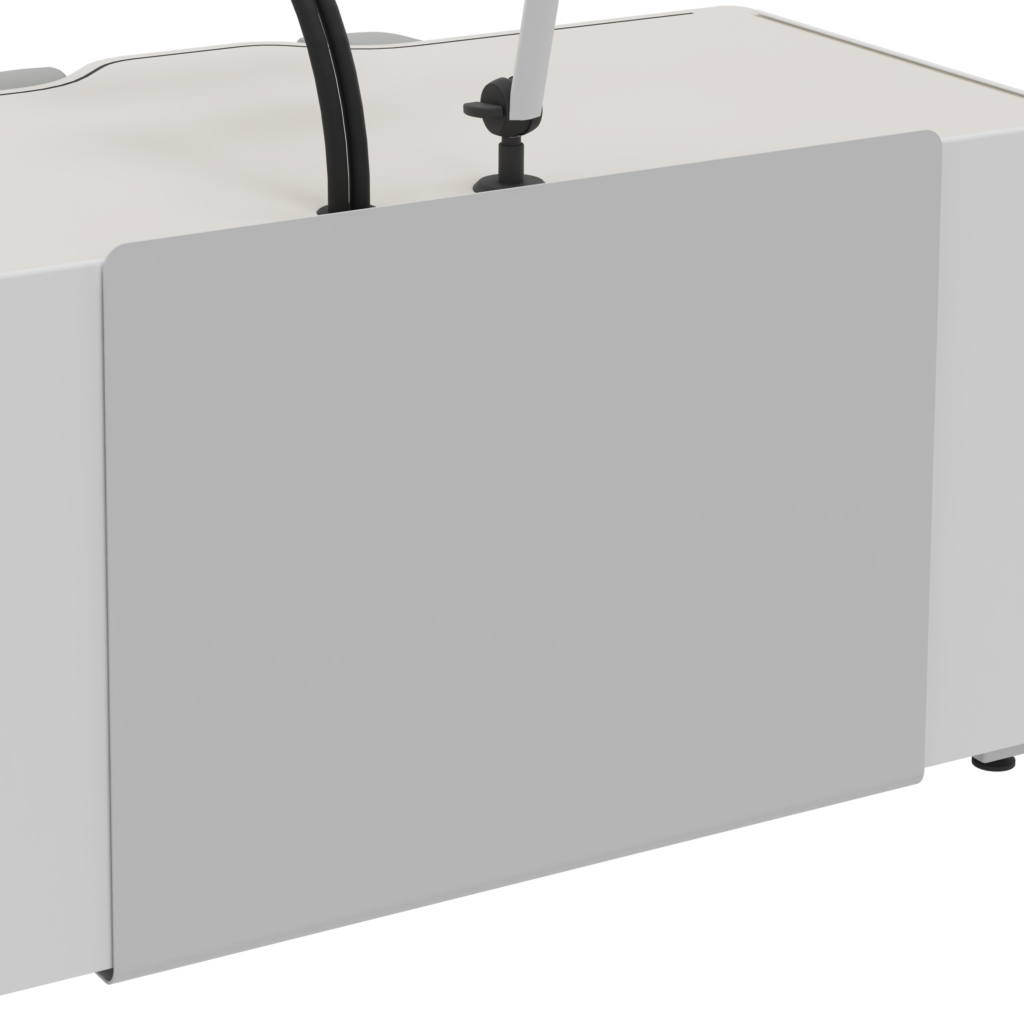

    • Short rear spoiler in steel finish with drilled holes in the worktop

      Short rear spoiler allowing the rear section of the workbench to be closed.
      The technical components are secured to the worktop via pre-drilled holes.

      The spoiler is finished in powder-coated sheet steel, colour RAL 7044; other colours available on request.

    • Side panel oak finish

      Side panel for closing off the side openings when they are not in use.
      Made from 19 mm black MDF covered with 0.9 mm real oak with a natural lacquer finish.

    • Side panel HPL finish

      Side panel for closing off the side openings when they are not in use.
      Made from 19 mm black MDF covered with 0.8 mm high pressure laminate (HPL).
