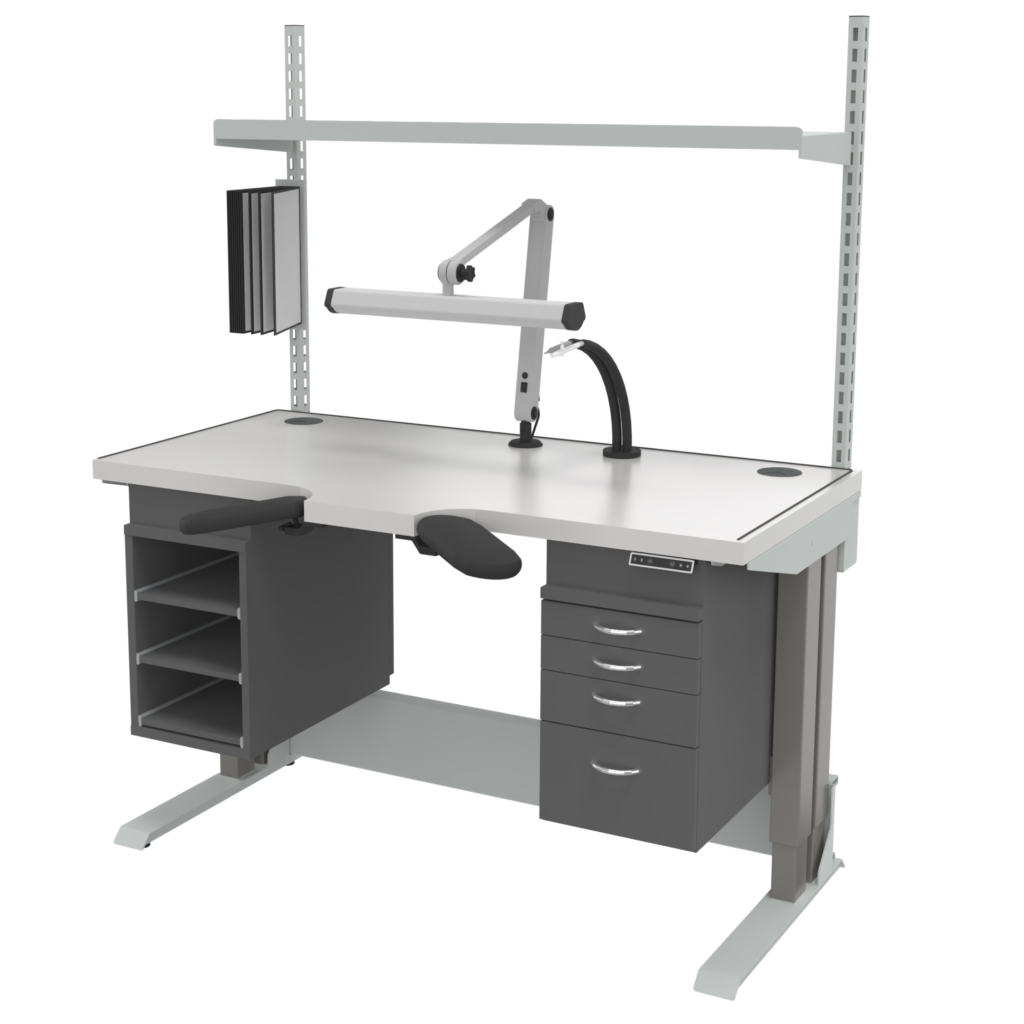

Finework “T” stand version watchmaker’s workbenches can adapt perfectly to your workshops. Their compact rigid steel structure guarantees excellent stability and unmatched robustness of your workbench.

Based on a common core design, this version offers countless possibilities for customisation: Electric stand, mobile armrests, custom storage compartments, choice of materials and colours, and also integration of any utilities you need to do your job.

In addition to the customisation options, we offer a wide range of accessories that you can integrate on Finework watchmaker’s workbenches. Need particular accessories or equipment? No worries, our workbenches can be configured to integrate this equipment.

The various watchmaker's workbench customisation options – "T" stand version

- Manually adjustable stand

  Manually adjustable "T" workbench stand. With workbench levelling screws. A power channel can be used to carry cables and various fluids. A lower cross-member can be used to install a footrest on the workbench.
  Specifications
  - Standard dimensions:
  - 1230 x 680 x 830-1190 mm
  - 1430 x 680 x 830-1190 mm
  - 1530 x 680 x 830-1190 mm
- Electric stand

  Electrically adjustable "T" workbench stand. With workbench levelling screws. A power channel can be used to carry cables and various fluids. A lower cross-member can be used to install a footrest on the workbench.
  Maximum admissible load: 400 kg
  Standard control panel with up/down function, digital height display and 4 memory-positions.
  Specifications
  - Standard dimensions:
  - 1230 x 680 x 740-1240 mm
  - 1430 x 680 x 740-1240 mm
  - 1530 x 680 x 740-1240 mm
- Light grey RAL 7035
- Metal grey NCS S 6502-B
- Pigeon grey NCS S 4502-B
- Black NCS S 9000-N
- Ruby red RAL 3003
- Reseda green RAL 6011
- Pure white RAL 9010
- Capri blue RAL 5019
- Light blue RAL 5012
- Safety blue RAL 5005
- Gentian blue RAL 5010
- Anthracite grey RAL 7016
- White aluminium RAL 9006
- White aluminium RAL 9006

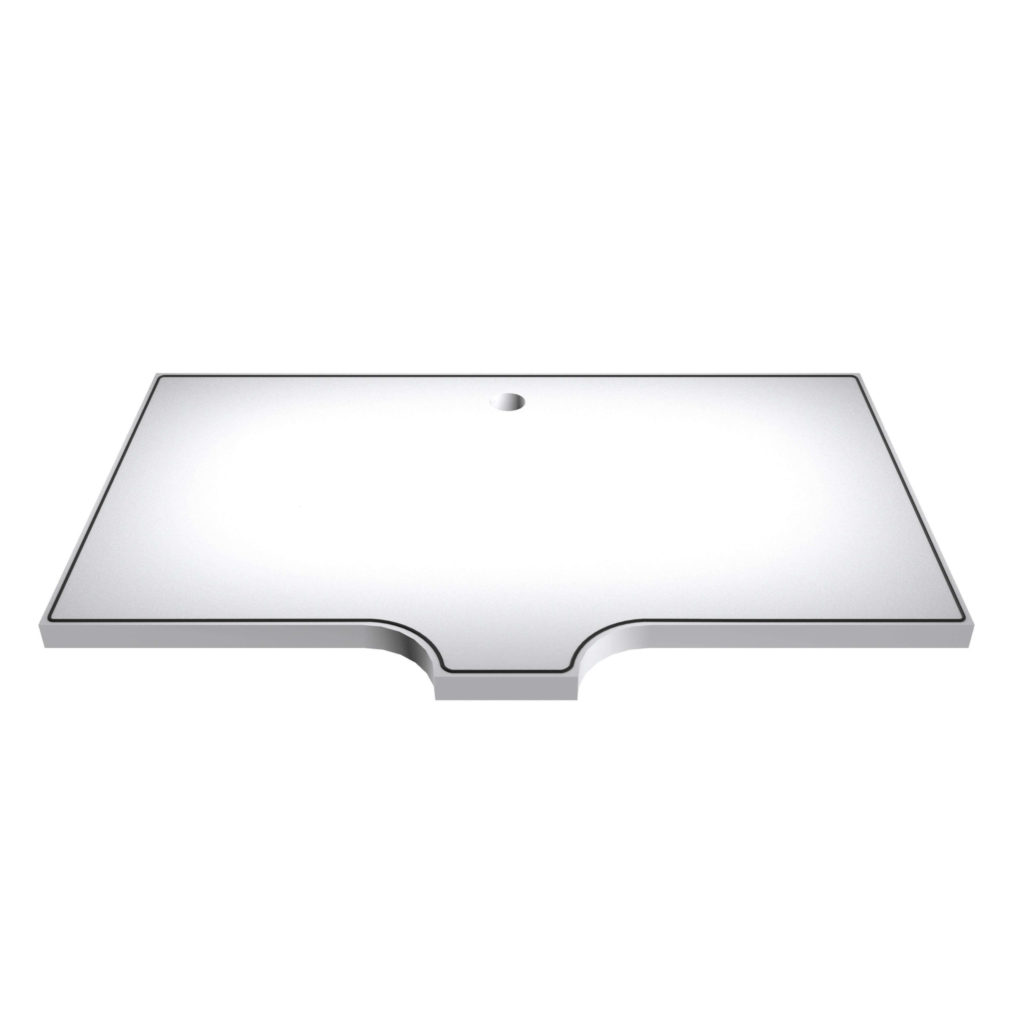

- Standard melamine

  Panels with pressed core, melamine coating, and ABS section edges matching the panel colour.
- Wood veneer or laminate

  Panels with pressed core, laminate coating, and ABS section edges matching the panel colour, or wood veneer coating. Our vast range of wood veneers or laminates mean that you can customise your workbench as you see fit.
- Fenix laminate nanotechnology

  Always at the cutting edge of technology, Finework workbenches are also available in nanotechnology-based smart materials, such as Fenix laminate. Low light reflectivity and extreme opacity, mark resistance, as well as scratch and abrasion resistance and anti-static properties, are just some of the special features this material provides. Fashionable, elegant and practical, Fenix provides a more chic and modern finish for your workbenches.
- Light grey NCS S 1500-N
- Worktop with built-in fixed armrests

  Workbench worktop with melamine coating and ABS edges. Milled area on the front part for fastening the fixed armrests. Worktop drillable for various accessories.
  Specifications
  - Standard dimensions:
  - 1230 x 680 mm
  - 1430 x 680 mm
  - 1530 X 680 mm
- Worktop with rail for sliding armrests

  Workbench worktop with melamine coating and ABS edges. Integrated rail on front for sliding armrests. Worktop drillable for various accessories.
  Specifications
  - Standard dimensions:
  - 1230 x 680 mm
  - 1430 x 680 mm
  - 1530 x 680 mm
- Worktop with surround armrests

  Workbench worktop with NCS S 1500-N grey laminate coating and ABS edges. Shaped front with a tip for fastening surround armrests or 3D adjustable armrests. Worktop drillable for various accessories.
  Specifications
  - Standard dimensions:
  - 1230 x 780 mm
  - 1430 x 780 mm
  - 1530 X 780 mm
- Compact worktop with adjustable armrests

  Workbench worktop with NCS S 1500-N grey laminate coating and ABS edges. Cut areas on the front part for fastening 3D adjustable armrests. Worktop drillable for various accessories.
  Specifications
  - Standard dimensions:
  - 1230 x 680 mm
  - 1430 X 680 mm
- Standard execution: surround trim

  The 3 mm black PVC trim surrounding the worktop prevents small parts from falling off the workbench.
- Optional execution: trim milled into the worktop

  The 2 mm milled trim surrounding the worktop prevents small parts from falling off the workbench.
- Fixed embedded armrests

  Anatomically shaped black skay leather armrests, embedded in the worktop.
- Fixed surround armrests

  Anatomically shaped black skay leather armrests, surrounding the worktop.
- Sliding armrests

  Anatomically shaped black skay leather armrests, mounted on a rail embedded in the worktop. Quick adjustment of the width and possibility of easy removal of the armrests.
- Simplified adjustable armrests

  3D multi-purpose armrests, with quick adjustment on single ball joint and lever clamping system. Anatomically shaped black skay leather armrests.
- Adjustable armrests

  4D multi-purpose armrests, with adjustable height, width, depth and angle. Steel support, with 2-lever setting. Anatomically shaped black skay leather armrests.
- Suspended metal drawer cabinet

  Metal drawer cabinet, with full extension and central lock.
  Various drawer heights available, ranging from 50 to 300 mm
  Specifications
  - Frame standard dimensions:
  - 411 x 572 x 283 mm
  - 411 x 572 x 383 mm
  - 411 x 572 x 533 mm*
  - *NB: this set-up is not compatible with the electric stand.
- Base-mounted drawer cabinet

  Metal drawer cabinet, with full extension and central lock.
  Various drawer heights available, ranging from 50 to 300 mm
  Overhang drawer unit mounted on a fixed support on the stand's lower cross-member.
  Specifications
  - Frame standard dimensions:
  - 411 x 572 x 533 mm
- Drawer block

  Laminate wood or plywood drawer units, with different drawer heights and extending shelf mounted on ball-bearing slides, with full or partial extension. Shock absorbing closing mechanism. Can be equipped with a central lock.
  Specifications
  - Block standard dimensions:
  - 307 x 550 x 457 mm
  - 307 x 550 x 502 mm
  - 307 x 550 x 713 mm*
  - *NB: this set-up is not compatible with the electric stand.
- Modular drawer units (upon request)

  The Finework new modular drawer unit system enables you to organise your drawers as you wish and according to your needs, at any time. No more lack of storage space, with cluttered work surfaces. No more need to kneel down to access your favourite drawer, every individual can select the positioning and composition of their drawer unit.

  The drawer blocks fit underneath each other via guide rails. The drawers can have different heights, and are mounted with ball-bearing slides with complete extension, as well as a shock absorbing closing mechanism.

  This option is only available for projects with a minimum of 20 workbenches.
  Specifications
  - Drawer standard dimensions:
  - 278 x 546 x 105 mm
  - 278 x 546 x 130 mm
  - 278 x 546 x 200 mm
- Gentian blue RAL 5010 (metal cabinet)
- Anthracite grey RAL 7016 (metal cabinet)
- Light grey RAL 7035 (metal cabinet)
- Metal grey NCS S 6502-B (metal cabinet)
- Pigeon grey NCS S 4502-B (metal cabinet)
- Black NCS S 9000-N (metal cabinet)
- Ruby red RAL 3003 (metal cabinet)
- Reseda green RAL 6011 (metal cabinet)
- Pure white RAL 9010 (metal cabinet)
- Capri blue RAL 5019 (metal cabinet)
- Light blue RAL 5012 (metal cabinet)
- Safety blue RAL 5005 (metal cabinet)
- White aluminium RAL 9006 (metal cabinet)
- Dark oak laminate (cabinet)
- Beech laminate (cabinet)
- Light grey NCS S 1500-N (cabinet)
- Dark grey NCS S 7500-N (cabinet)
- Light oak laminate (cabinet)
- Beech veneer (cabinet)
- Light oak veneer (cabinet)
- Drilled holes in the worktop

  Various holes can be drilled in the worktop, such as for round or rectangular cable runs, for lamp holders, for compressed air/vacuum systems, for monitor holders, or according to your equipment integration needs.
- Cubic utilities rail

  Modular cube system built into the worktop, enabling you to fasten your various accessories such as the lamp, air/vacuum system, power outlets, USB connections, etc. in the position of your choice. The positioning of the components may be modified at any time, without tools.
- Rear utilities compartment

  A rear compartment with access flap, for concealing and organising the various fluids and wiring for the workbench.
